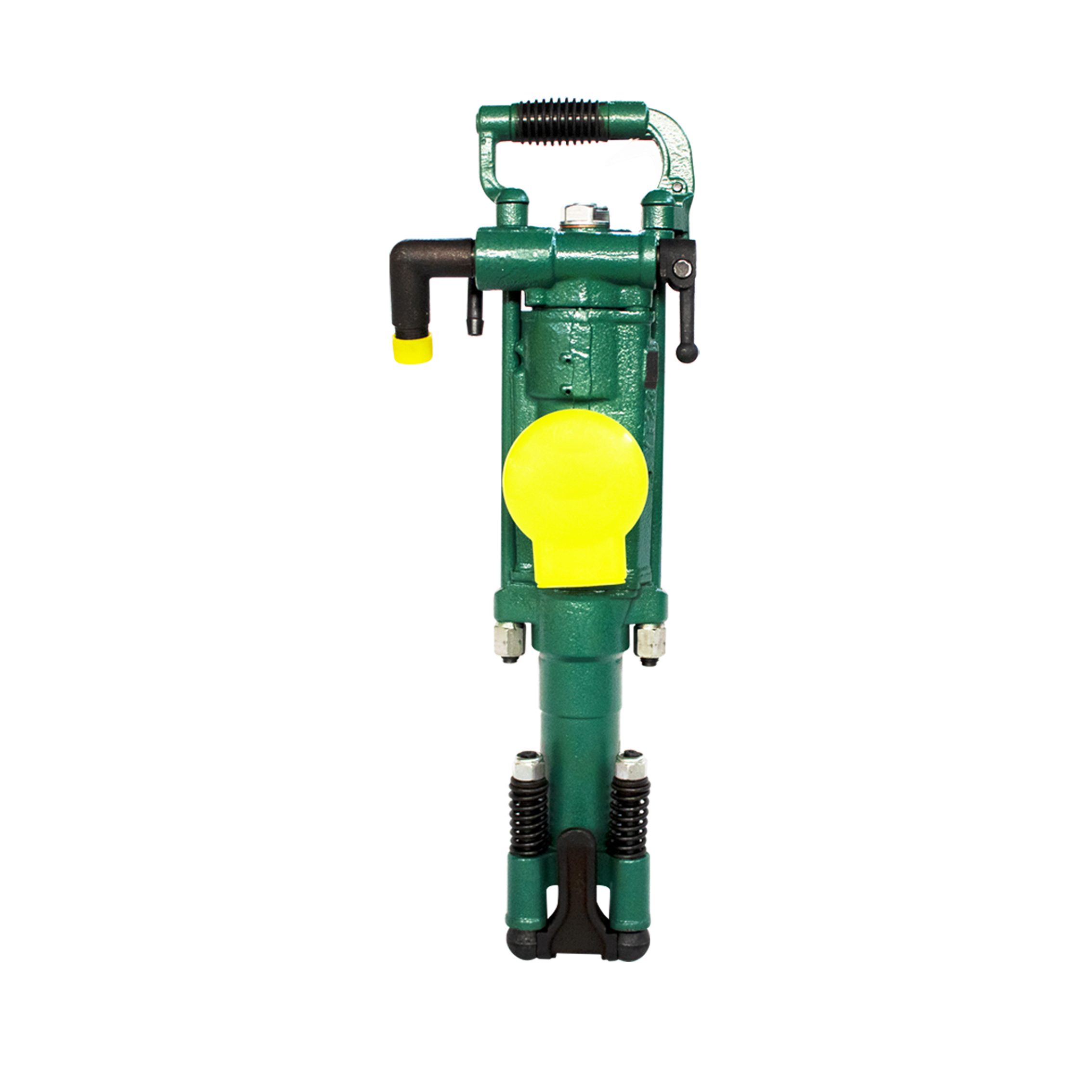

YT28 Pneumatic leg rock drill
Air leg rock drill is an efficient rock drilling machine. It is widely used in rock excavation and various rock drilling operations to drill and blast holes, and is an important machine in rock engineering such as mines, railways, transportation, and water conservancy construction. The air leg rock drill is efficient and energy-saving, suitable for dry or wet drilling of downward and inclined blast holes on medium hard or hard rocks. The drilling diameter is 34-46 millimeters, and the effective drilling depth can reach 5 meters. This machine is equipped with FT160A long gas legs or FT160B short gas legs, and the gas legs can also be removed and installed on a trolley for use; It can drill holes horizontally or obliquely, and can operate in various chambers. The operating mechanism is centralized, the start is flexible, easy to use, and maintenance is simple; Energy saving and high efficiency, long service life of parts, and good reliability.
| Technical specifications of YT28 pneumatic leg rock drill | ||
| Machine weight | twenty-six | KG |
| Machine length | six hundred and sixty-one | MM |
| Cylinder diameter | eighty | MM |
| Piston stroke | sixty | MM |
| Working air pressure | 0.40.5 0.63 | MPa |
| Impact frequency | ≥28≥35≥36 | HZ |
| Gas consumption | ≤ 52≤58 ≤82 | L/S |
| Impact energy | ≥44≥63≥70 | J |
| Turning torque | ≥15≥19≥23 | N• m |
| Rotating speed of the drill bit | 250 ≥ 260 ≥ 300 | r/m |
| Drilling speed | ≥250≥400≥470 | MM/m |
| Noise | ≤ 124≤ 125≤ 127 | dB |
| Average linear meter before the first failure | ≥400 | M |
| Depth of drilling without dismantling the machine | ≥300 | M |
| Tracheal inner diameter | Twenty-five | MM |
| Inner diameter of water pipe | Thirteen | MM |
| Drill head diameter | Φ34-42 | MM |
| Specification of brazing tal (hexagonal opposite side x length) | Length) 22 x 108 soil 1 | MM |
